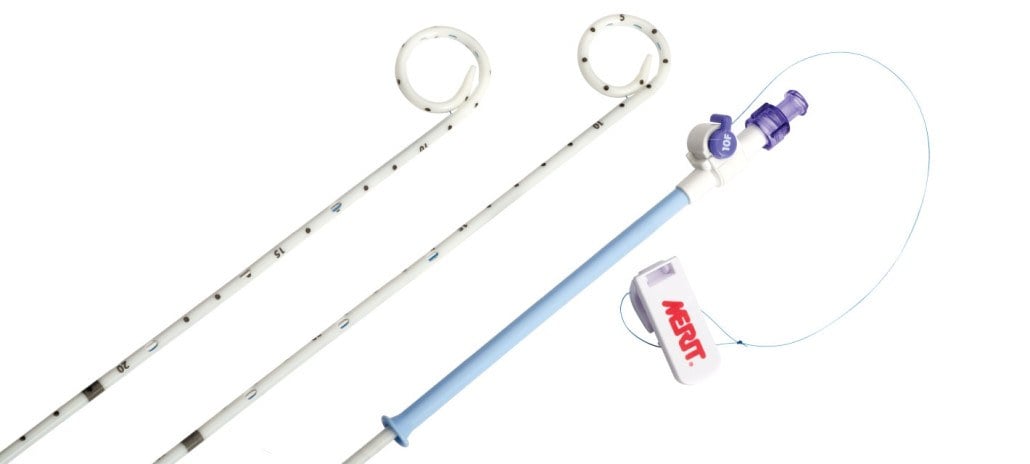

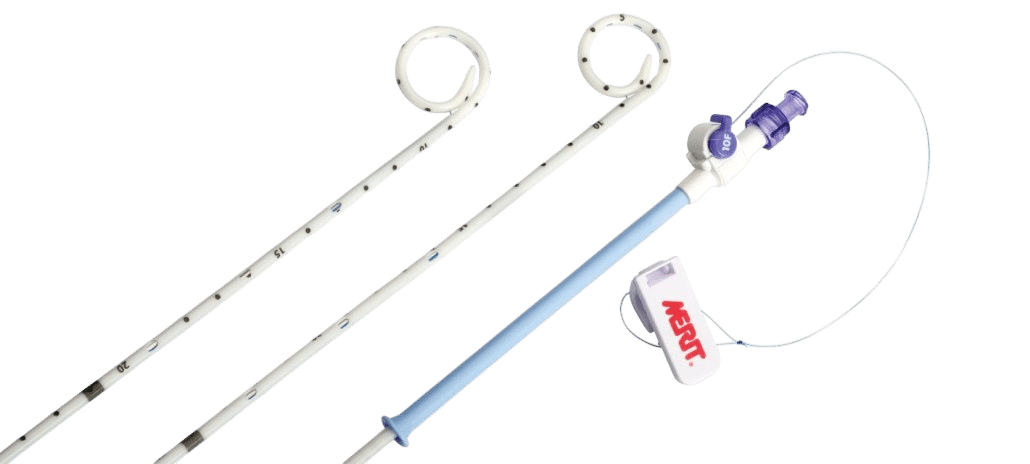

ReSolve+™ Biliary Locking Drainage Catheter

products images
solution

Features & Benefits

Polyurethane Material

Allows for long-term indwelling time.

Large Drainage Holes

Help maximize drainage.

Unique Design

Catheter is designed to allow unimpeded drainage.

Depth Markers

Depth markers and radiopaque marker band helps with fast and accurate positioning.

Atraumatic Pigtail

Designed to reduce the potential for damaging the duodenum.

Pigtail Straightener

Allows for easy insertion of the stiffening cannulas.

Hydrophilic Coating

Facilitates smooth insertion.

Two Drainage Hole Patterns

Accommodate multiple lesion locations and varying patient anatomy.


MRI INFORMATION

MR_Conditional

MRI INFORMATION
MR CONDITIONAL

The ReSolve+ Biliary Locking Drainage Catheter is MR Conditional

Non-clinical testing has demonstrated that the ReSolve+ Biliary Locking Drainage Catheter is MR Conditional. This device can be scanned safely in a patient, immediately after placement under the following conditions:

  • Static Magnetic Field of 3 Tesla or less
  • Maximum spatial gradient magnetic field of 4,000 gauss/cm (40 T/m)
  • Maximum MR system reported, whole body averaged specific absorption rate (SAR) of 4-W/kg in the First Level Controlled Operating Mode of operation for the MR system

MRI-RELATED HEATING

Under the scan conditions defined above, the ReSolve+ Biliary Locking Drainage Catheter is expected to produce a maximum temperature rise of 2.3°C after 15 minutes of continuous scanning.

ARTIFACT INFORMATION

The maximum artifact size as seen on the gradient echo pulse sequence at 3-Tesla extends approximately 2-mm relative to the size of the shape of the ReSolve+ Biliary Locking Drainage Catheter.

document

Documents

Discover more about the ReSolve+™ Biliary Locking Drainage Catheter by reviewing the brochures and Instructions for Use.

list

Order Information
