HeRO Graft

Reducing Catheter Dependency

The HeRO® Graft is a hemodialysis access graft for patients who are failing fistulas or grafts or are catheter-dependent due to the blockage of veins leading to the heart.

products images
    solution

    Features & Benefits

    Compared to other catheters, HeRO Graft has:

    Fewer Infections

    Fewer Infections: 69% reduced infection rate compared with catheters1

    High Patency Rates

    Up to 87% cumulative patency at 2 years1,2

    Cost Savings

    A 23% average savings per year compared with catheters3

    Superior Dialysis Adequacy

    • 1.7 Kt/V, a 16% to 32% improvement compared with catheters1
    • 16% to 32% improved dialysis clearance of toxins and fluids (Kt/V)1
    • Less than half the interventions to keep access functioning1

    HeRO Graft Candidates / Is HeRO Graft Right for You?

    HeRO Graft may be right for your or your patient if:

    • Catheter-dependent or approaching catheterdependency
    • Failing fistulas or grafts due to central venous stenosis

    THE HeRO GRAFT DIFFERENCE

    HeRO Graft (Hemodialysis Reliable Outflow) is the ONLY fully subcutaneous AV access solution clinically proven to maintain long-term access for hemodialysis patients with central venous stenosis. HeRO Graft is classified by the FDA as a graft, but differs from a conventional AV graft since it has no venous anastomosis. It consists of two primary components:

    Implant site diagram left side insertion of HeRO graft

    A Proprietary ePTFE Arterial Graft Component

    The HeRO Graft Arterial Graft Component has a 6mm inner diameter (ID), 7.4mm outer diameter (OD), and is 53cm long, inclusive of the connector. It consists of an ePTFE hemodialysis graft with PTFE beading to provide kink resistance near the proprietary titanium connector. The titanium connector attaches the Arterial Graft Component to the Venous Outflow Component. The Arterial Graft Component is cannulated using standard technique according to KDOQI guidelines.

    A Proprietary ePTFE Venous Outflow Component

    The HeRO Graft Venous Outflow Component has a 5mm ID, 19F (6.3mm) OD, and is 40cm long. It consists of radiopaque silicone with braided nitinol reinforcement (for kink and crush resistance) and a radiopaque marker band at the distal tip.

    See the HeRO Graft Instructions for use.

    Diagram of left side HeRO Graft insertion into patient

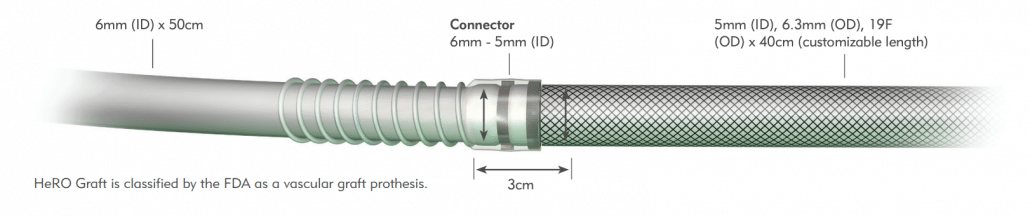

    ePTFE Graft with Connector

    • Beading (3-4cm) for kink resistance
    • Orientation line on graft to guide placement during tunneling
    • Titanium connector

    Silicone-Coated Nitinol Component

    • No venous anastomosis
    • Reinforced 48 braid nitinol: kink & crush resistant
    • Removable and replaceable Radiopaque band (at distal tip) integrated within the silicone

    HeRO Graft ePTFE with connector and silicone-coated Nitinol component

    References

    1. Initial Experience and Outcome of a New Hemodialysis Access Device for Catheter-Dependent Patients.Howard E. Katzman, Robert B. McLafferty, John R. Ross, Marc H. Glickman, Eric K. Peden and Jeffrey H. Lawson. JVS, Journal of Vascular Surgery, September 2009 Volume 50, Issue 3, Pages 600-607.e1
    2. Gage et al., EJVES 2012.
    3. Dageforde et al., JSR 2012.
